Turn Node Into Validator

Introduction

The Primary Network is inherent to the Lux platform and validates Lux's built-in blockchains. In this tutorial, we'll add a node to the Primary Network on Lux.

The Platform-Chain manages metadata on Lux. This includes tracking which nodes are in which Lux L1s, which blockchains exist, and which Lux L1s are validating which blockchains. To add a validator, we'll issue transactions to the Platform-Chain.

Requirements

You've completed Run an Lux Node and are familiar with Lux's architecture. In this tutorial, we use LuxJS and Lux's Postman collection to help us make API calls.

In order to ensure your node is well-connected, make sure that your node can receive and send TCP traffic on the staking port (9651 by default) and your node has a public IP address(it's optional to set --public-ip=[YOUR NODE'S PUBLIC IP HERE] when executing the LuxGo binary, as by default, the node will attempt to perform NAT traversal to get the node's IP according to its router). Failing to do either of these may jeopardize your staking reward.

Add a Validator with Core extension

First, we show you how to add your node as a validator by using Core web.

Retrieve the Node ID, the BLS signature and the BLS key

Get this info by calling info.getNodeID:

curl -X POST --data '{
    "jsonrpc":"2.0",
    "id"     :1,
    "method" :"info.getNodeID"
}' -H 'content-type:application/json' 127.0.0.1:9650/ext/info

The response has your node's ID, the BLS key (public key) and the BLS signature (proof of possession):

{
  "jsonrpc": "2.0",
  "result": {
    "nodeID": "NodeID-5mb46qkSBj81k9g9e4VFjGGSbaaSLFRzD",
    "nodePOP": {
      "publicKey": "0x8f95423f7142d00a48e1014a3de8d28907d420dc33b3052a6dee03a3f2941a393c2351e354704ca66a3fc29870282e15",
      "proofOfPossession": "0x86a3ab4c45cfe31cae34c1d06f212434ac71b1be6cfe046c80c162e057614a94a5bc9f1ded1a7029deb0ba4ca7c9b71411e293438691be79c2dbf19d1ca7c3eadb9c756246fc5de5b7b89511c7d7302ae051d9e03d7991138299b5ed6a570a98"
    }
  },
  "id": 1
}

Add as a Validator

Connect Core extension to Core web, and go the 'Staking' tab. Here, choose 'Validate' from the menu.

Fill out the staking parameters. They are explained in more detail in this doc. When you've filled in all the staking parameters and double-checked them, click Submit Validation. Make sure the staking period is at least 2 weeks, the delegation fee rate is at least 2%, and you're staking at least 2,000 LUX on Mainnet (1 LUX on Testnet Testnet). A full guide about this can be found here.

You should see a success message, and your balance should be updated.

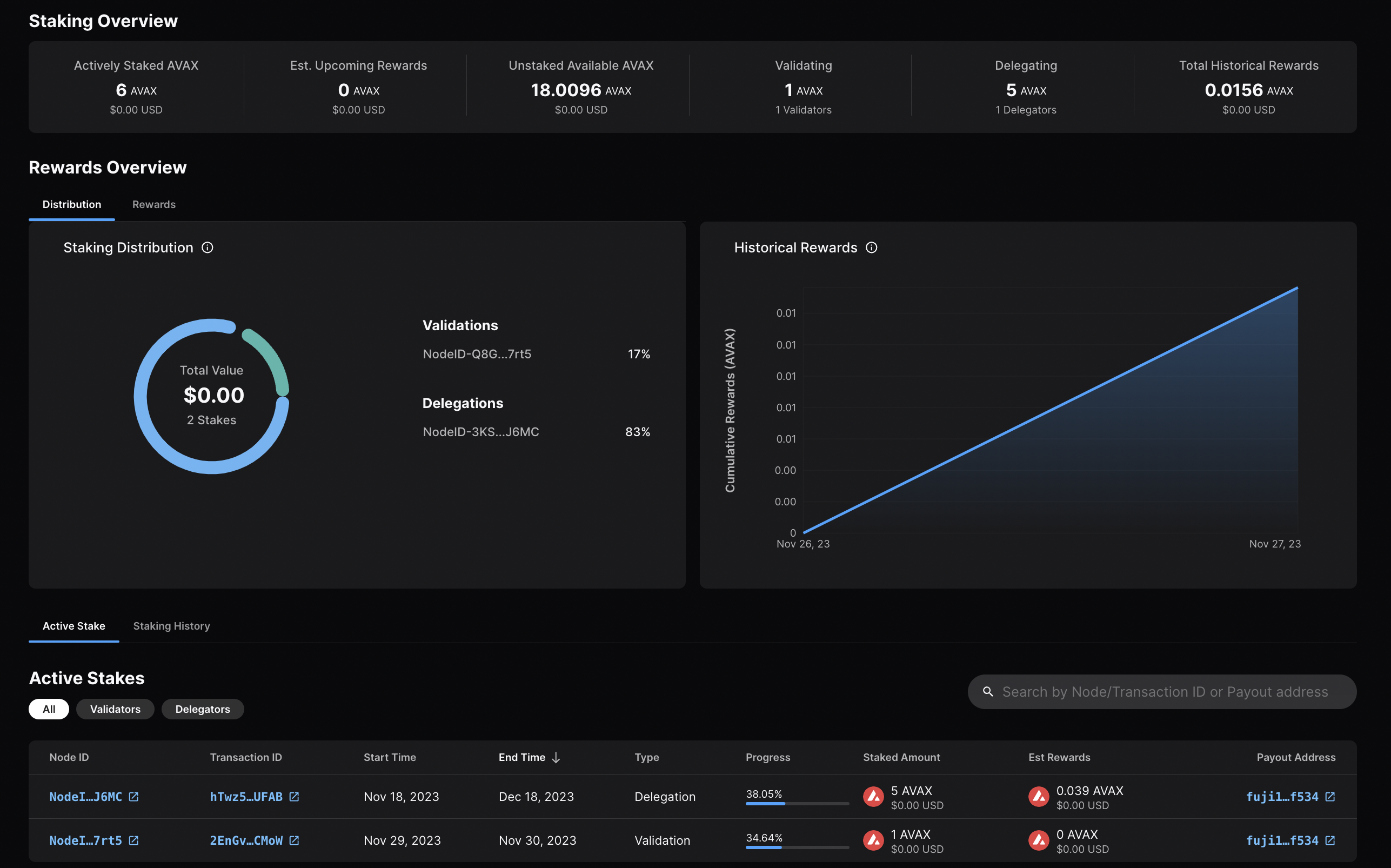

Go back to the Stake tab, and you'll see here an overview of your validation, with information like the amount staked, staking time, and more.

Calling platform.getPendingValidators verifies that your transaction was accepted. Note that this API call should be made before your node's validation start time, otherwise, the return will not include your node's id as it is no longer pending.

You can also call platform.getCurrentValidators to check that your node's id is included in the response.

That's it!

Add a Validator with LuxJS

We can also add a node to the validator set using LuxJS.

Install LuxJS

To use LuxJS, you can clone the repo:

git clone https://github.com/luxfi/luxjs.git

or add it to an existing project:

yarn add @luxfi/luxjs

For this tutorial we will use ts-node to run the example scripts directly from an LuxJS directory.

Testnet Workflow

In this section, we will use Testnet Testnet to show how to add a node to the validator set.

Open your LuxJS directory and select the examples/p-chain folder to view the source code for the examples scripts.

We will use the validate.ts script to add a validator.

Add Necessary Environment Variables

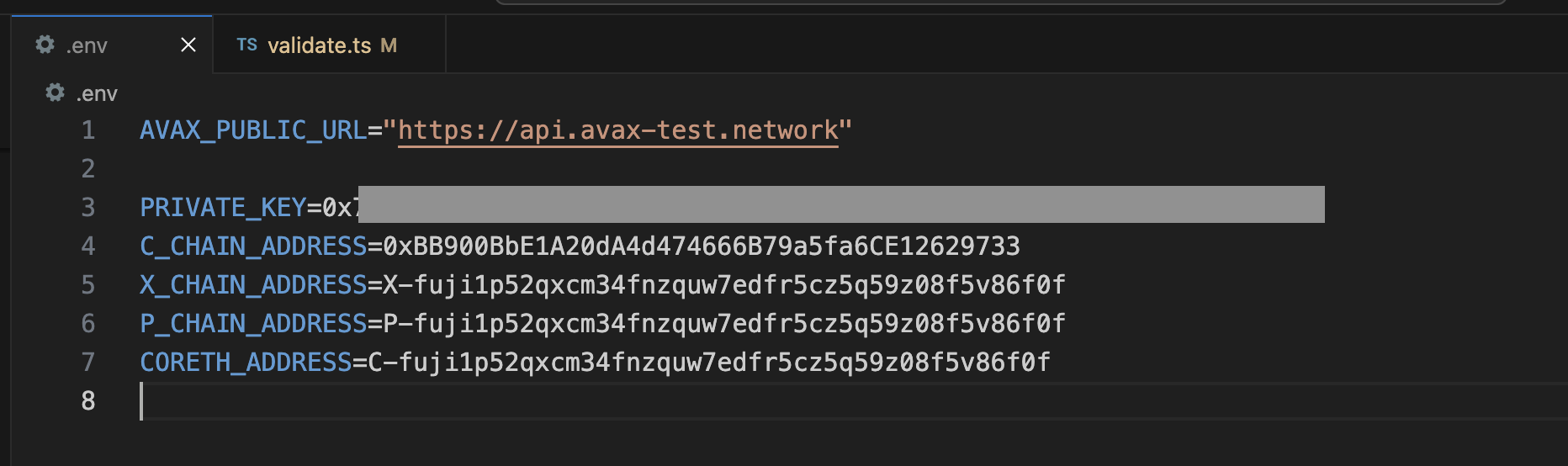

Locate the .env.example file at the root of LuxJS, and remove .example from the title. Now, this will be the .env file for global variables.

Add the private key and the Platform-Chain address associated with it. The API URL is already set to Testnet (https://api.lux-test.network/).

Retrieve the Node ID, the BLS signature and the BLS key

Get this info by calling info.getNodeID:

curl -X POST --data '{
    "jsonrpc":"2.0",
    "id"     :1,
    "method" :"info.getNodeID"
}' -H 'content-type:application/json' 127.0.0.1:9650/ext/info

The response has your node's ID, the BLS key (public key) and the BLS signature (proof of possession):

{
  "jsonrpc": "2.0",
  "result": {
    "nodeID": "NodeID-JXJNyJXhgXzvVGisLkrDiZvF938zJxnT5",
    "nodePOP": {
      "publicKey": "0xb982b485916c1d74e3b749e7ce49730ac0e52d28279ce4c5c989d75a43256d3012e04b1de0561276631ea6c2c8dc4429",
      "proofOfPossession": "0xb6cdf3927783dba3245565bd9451b0c2a39af2087fdf401956489b42461452ec7639b9082195b7181907177b1ea09a6200a0d32ebbc668d9c1e9156872633cfb7e161fbd0e75943034d28b25ec9d9cdf2edad4aaf010adf804af8f6d0d5440c5"
    }
  },
  "id": 1
}

Fill in the Node ID, the BLS signature and the BLS key

After retrieving this data, go to examples/p-chain/validate.ts.

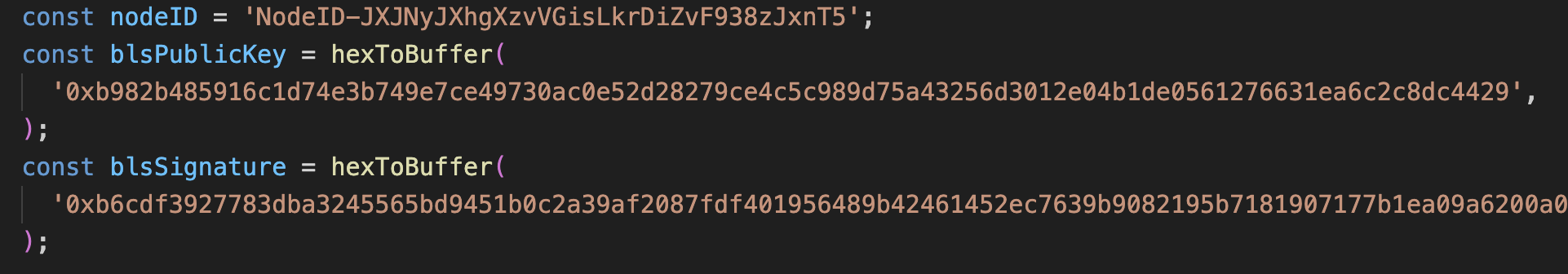

Replace the nodeID, blsPublicKey and blsSignature with your own node's values.

Settings for Validation

Next we need to specify the node's validation period and delegation fee.

Validation Period

The validation period is set by default to 21 days, the start date being the date and time the transaction is issued. The start date cannot be modified.

The end date can be adjusted in the code.

Let's say we want the validation period to end after 50 days. You can achieve this by adding the number of desired days to endTime.getDate(), in this case 50.

// move ending date 50 days into the future
endTime.setDate(endTime.getDate() + 50);

Now let's say you want the staking period to end on a specific date and time, for example May 15, 2024, at 11:20 AM. It can be achieved as shown in the code below.

const startTime = await new PVMApi().getTimestamp();
const startDate = new Date(startTime.timestamp);
const start = BigInt(startDate.getTime() / 1000);

// Set the end time to a specific date and time
const endTime = new Date('2024-05-15T11:20:00'); // May 15, 2024, at 11:20 AM
const end = BigInt(endTime.getTime() / 1000);

Delegation Fee Rate

Lux allows for delegation of stake. This parameter is the percent fee this validator charges when others delegate stake to them. For example, if delegationFeeRate is 10 and someone delegates to this validator, then when the delegation period is over, 10% of the reward goes to the validator and the rest goes to the delegator, if this node meets the validation reward requirements.

The delegation fee on LuxJS is set 20. To change this, you need to provide the desired fee percent as a parameter to newAddPermissionlessValidatorTx, which is by default 1e4 * 20.

For example, if you'd want it to be 10, the updated code would look like this:

const tx = newAddPermissionlessValidatorTx(
  context,
  utxos,
  [bech32ToBytes(P_CHAIN_ADDRESS)],
  nodeID,
  PrimaryNetworkID.toString(),
  start,
  end,
  BigInt(1e9),
  [bech32ToBytes(P_CHAIN_ADDRESS)],
  [bech32ToBytes(P_CHAIN_ADDRESS)],
  1e4 * 10, // delegation fee, replaced 20 with 10
  undefined,
  1,
  0n,
  blsPublicKey,
  blsSignature,
);

Stake Amount

Set the amount being locked for validation when calling newAddPermissionlessValidatorTx by replacing weight with a number in the unit of nLUX. For example, 2 LUX would be 2e9 nLUX.

const tx = newAddPermissionlessValidatorTx(
  context,
  utxos,
  [bech32ToBytes(P_CHAIN_ADDRESS)],
  nodeID,
  PrimaryNetworkID.toString(),
  start,
  end,
  BigInt(2e9), // the amount to stake
  [bech32ToBytes(P_CHAIN_ADDRESS)],
  [bech32ToBytes(P_CHAIN_ADDRESS)],
  1e4 * 10,
  undefined,
  1,
  0n,
  blsPublicKey,
  blsSignature,
);

Execute the Code

Now that we have made all of the necessary changes to the example script, it's time to add a validator to the Testnet Network.

Run the command:

node --loader ts-node/esm examples/p-chain/validate.ts

The response:

laviniatalpas@Lavinias-MacBook-Pro luxjs % node --loader ts-node/esm examples/p-chain/validate.ts
(node:87616) ExperimentalWarning: `--experimental-loader` may be removed in the future; instead use `register()`:
--import 'data:text/javascript,import { register } from "node:module"; import { pathToFileURL } from "node:url"; register("ts-node/esm", pathToFileURL("./"));'
(Use `node --trace-warnings ...` to show where the warning was created)
{ txID: 'RVe3CFRieRbBvKXKPu24Zbt1QehdyGVT6X4tPWVBeLPX3Ab8' }

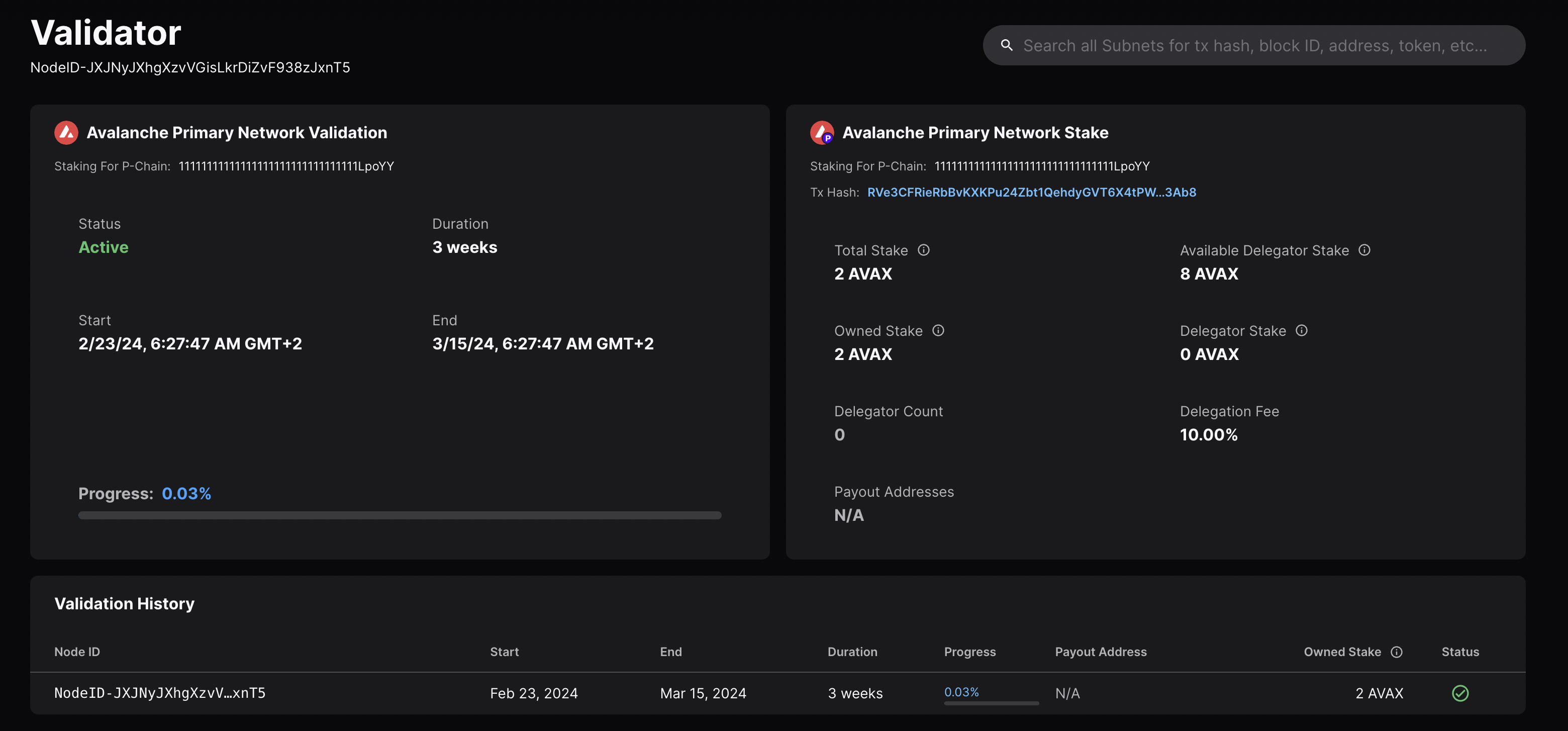

We can check the transaction's status by running the example script with platform.getTxStatus or looking up the validator directly on the explorer.

Mainnet Workflow

The Testnet workflow above can be adapted to Mainnet with the following modifications:

• LUX_PUBLIC_URL should be https://api.lux.network/.
• P_CHAIN_ADDRESS should be the Mainnet Platform-Chain address.
• Set the correct amount to stake.
• The blsPublicKey, blsSignature and nodeID need to be the ones for your Mainnet Node.
